Developer Portal | Trueplay

​🔵
Operator integration - API

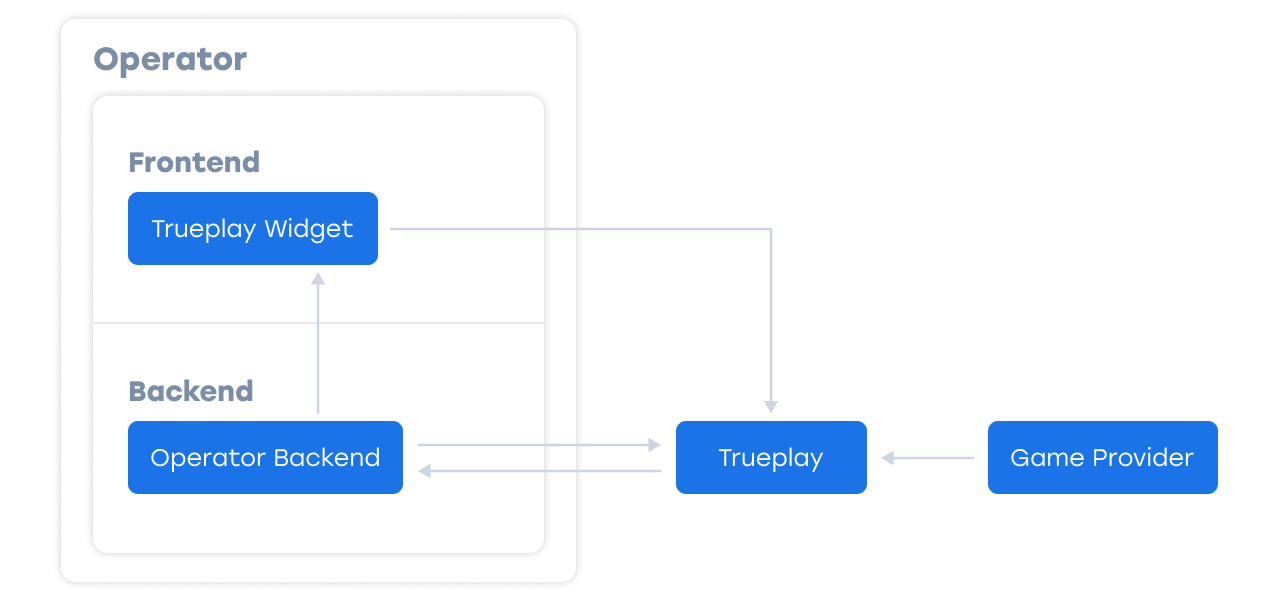

Components diagram
Proxy integration
Operators should direct all traffic from game providers via Trueplay proxy.
Endpoint for game providers to send traffic to is https://{operator-name}.proxy.true-play.io
Trueplay proxy will pass all traffic from game providers to the operator endpoint.
An operator should push user game session information after the session started before any transactions happen using Push-game-session.
Widget integration
Operators should get Widget URL by Get-widget-URL and embed Widget via iframe in Operator portal.
Trueplay endpoints
Push game session
METHOD
POST
URL
​https://integration.true-play.io/api/v1/game-session​
BODY
{
"operatorUserId": "john12345", "externalGameSessionId": "abc1234", "gameProvider": "Boongo",
"currency": "USD",
"gameName": "Fruit Nonja",
"gameType": "LIVE_LOTTERY"
 }
HEADERS
X-API-KEY:143c387-30c6-43f8-b0c2-49f593c31e23 Content-Type: application/json
DETAILS
X-API-KEY - Operator key issued by TruePlay to access TruePlay API
​
Get widget URL
METHOD
GET
URL
​https://integration.true-play.io/api/v1/user/%7BoperatorUserId%7D/widget​
HEADERS
X-API-KEY:195c3567-30c6-43f8-b0c6-55f675c21e83
RESPONSE
{
"url": "https://widget.true-play.io?token=eyJhbGciOiJIUzUxMiJ9.eyJpZF9vcGVyYXRvciI6MSwiaWRfdXNlciI6NzUxMSwicm9sZSI6IlJPTEVfVVNFUiIsImV4cCI6MTYzNDY0NjA5Mn0.umIbsJCJAQmATaVj50nS1uFAhWpLLf3Ztq953aomIS7Vl5Es-BlHuKdof_CYGBcAsimR3q1K1_3LmDZXB8iC8w”
}
DETAILS
operatorUserId - ID of user in Operator
​
X-API-KEY - Operator key issued by TruePlay to access TruePlay API
Operator endpoints
Get User Balance
METHOD
POST
URL
 https://{operatorbaseUrl}/user-balance ​
HEADERS
X-REQUEST-SIGNATURE:SIccPXmsq6XdaCd9t82ghl1bny54yVnwpjXNo0t0vLkPgtkUIQtt+1OoXp8FQfak0JyjK6FhayLHrO6RPAIIDg==
BODY
{
"operatorId": 1,
"operatorUserId": "user1"
}
RESPONSE
{
"balance": 0,
"currency": "string"
}
DETAILS
​
Token Exchange
METHOD
POST
URL
​ https://{operatorbaseUrl}/token-exchange​
HEADERS
X-REQUEST-SIGNATURE:SIccPXmsq6XdaCd9t82ghl1bny54yVnwpjXNo0t0vLkPgtkUIQtt+1OoXp8FQfak0JyjK6FhayLHrO6RPAIIDg==
BODY
{
"action": CREDIT | DEBIT,
 "amount": 3.56,
 "currency": "USD",
 "exchangeRate": 5.31,
 "tokenAmount": 18.9036,
 "operatorId": 1,
 "operatorUserId": "user1"
}
RESPONSE
{
"balance": 0,
"currency": "string"
 }
DETAILS
operatorUserId - ID of user in Operator
operatorId - ID of Operator
X-REQUEST-SIGNATURE - Request signature, Base64(HmacSHA512(SecretKey, MD5(request body)))
CREDIT - Transfer from token balance to operator account balance
DEBIT - Transfer operator account balance to token balance
Trueplay parameters
Proxy URL: https://{operator-name}.proxy.true-play.io
Integration URL: https://integration.true-play.io
Secret(example): Qi3h+ET-6XaWA$3}B/Q:[email protected]'
Provide admin account with credentials

Operator parameters
Operator URL (example):
Base: https://integration.operator.com/api
Paths per game provider:
- GAME_PROVIDER_CODE: /game-provider-path
- BOOONGO: /booongo
- HUB88: /hub88
​
​🔵
Create user
METHOD
POST
URL
​https://integration.true-play.io/api/v1/user​
BODY
{
  "operatorUserId": "john12345",
  "partnerId": 1 | null
}
HEADERS
X-API-KEY:143c4562-20c9-43f8-b0c8-3576f685c31e23
Content-Type: application/json
DETAILS
X-API-KEY - Operator key issued by TruePlay to access TruePlay API
​🔵
Update user
​
METHOD
PUT
URL
​https://integration.true-play.io/api/v1/user​
BODY
{
  "operatorUserId": "john12335",
"test": true | false |null
}
HEADERS
X-API-KEY:143c5767-30c6-24f8-b0c6-48f698c31e93
Content-Type: application/json
DETAILS
X-API-KEY - Operator key issued by TruePlay to access TruePlay API
​🔵
Get user
METHOD
GET
URL
https://integration.true-play.io/api/v1/user/{operatorUserId}
BODY
{
  "operatorUserId": "john12345",
  "partnerId": 1 | null,
"test": false | null,
"balance": 0.0001
}
HEADERS
X-API-KEY:143c5076-30c6-43f8-b0c6-48f687c31e93
Content-Type: application/json
DETAILS
X-API-KEY - Operator key issued by TruePlay to access TruePlay API
​🔵
Reporting integration
​
Proxy only accepts traffic from an operator.
This endpoint should be implemented when the operator does not direct all traffic from game providers via TruePlay proxy. In that case, the operator should send game transactions to TruePlay proxy by himself.
​
METHOD
POST
URL
https://{operator-name}.proxy.true-play.io/api/v1/accept
BODY
{
  "type": "BET | WIN | ROLLBACK",
  "gameSessionId": "gs1",
  "amount": 1.000000009,
"transactionId": "tx2",
"referenceTransactionId": "tx1" | null
}
HEADERS
X-API-KEY:154c5598-30c6-75f8-b0c6-48f690c31e23
Content-Type: application/json
DETAILS
X-API-KEY - Operator key issued by TruePlay to access TruePlay API
​🔵
Proxy integration
Operators should route all traffic from game providers through the Trueplay proxy.
The endpoint to which game providers send traffic is https://{operatorname}.proxy.true-play.io.
Trueplay proxy will pass all traffic from game providers to the operator endpoint.
An operator should push user game session information after the session started and before any transactions happen using 👇
Push game session

METHOD
POST
URL
https://integration.true-play.io/api/v1/game-session
BODY
{
  "operatorUserId": "john12345",
  "externalGameSessionId": "abc1234",
  "gameProvider": "Boongo",
  "currency": "USD",
"gameName": "Fruit Nonja",
"gameType": "LIVE_LOTTERY"
}
HEADERS
X-API-KEY:143c5877-30c6-93f8-b0c6-48f435c01e93
Content-Type: application/json
DETAILS
X-API-KEY - Operator key issued by Trueplay to access Trueplay API
​🔵
Errors
We use standard HTTP codes. An error message will be returned in the response body.
400 Bad Request
Invalid request parameters provided
401 Unauthorized
Requester is unauthorized to perform an action
403 Forbidden
Requester is forbidden to perform an action
404 Not Found
Resource not found
